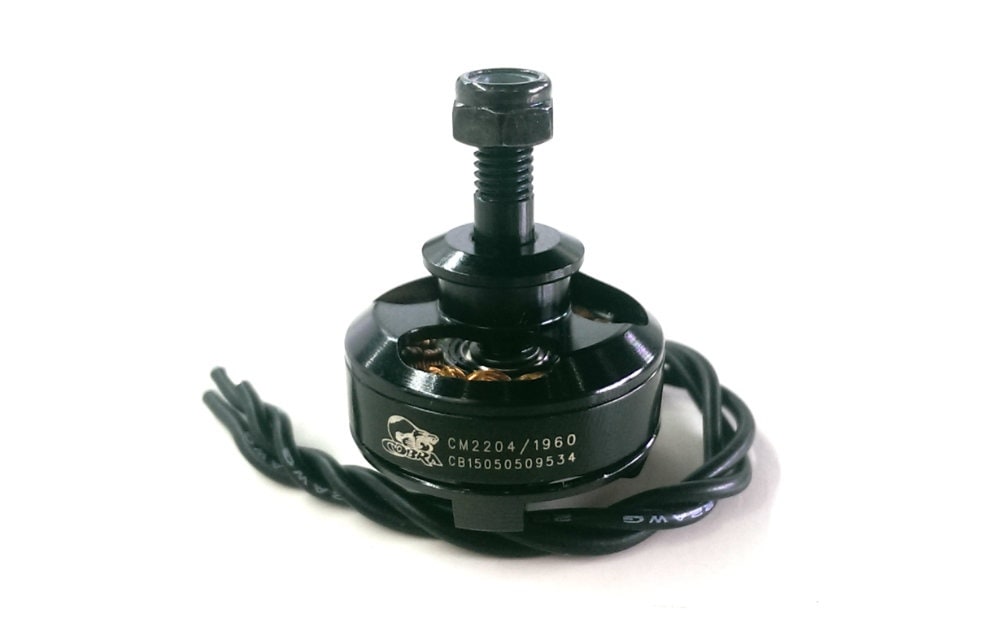

Description Cobra CM-2204-32 2-4S 1960Kv COBRA 2204 brushless motor, all parts are made of a high-precision CNC machining centers, all of the surface oxidation treatment. In pursuit of the perfect groove full rate, we use high-temperature and high-purity oxygen-free copper wire wrapped by hand, as well as high-grade magnet 0.2 mm laminated to improve efficiency. These materials reflect the value of the Cobra motor. 2204 motor weighs only 22.5 grams, and the bases loaded with cross one, is designed specifically for ultralight indoor acrobatic model (F3P) design. Two large and high-quality ball bearings fixed rotor to ensure its long life and good balance. Propeller motor with a full installation accessories, as well as to protect the motor and its accessories, perfect packaging. Diameter of the stator 22 mm The thickness of the stator 4 mm The stator arms No. 12 Poles 14 Wind turbine 32Turn Delta Motor Kv 1960KV (RPM / V) No-load current (IO) 0.58 amps (8 volts) Motor resistance (RM) per phase 0.153Ohms Motor resistance (RM) phase voltage 0.102Ohms Maximum Continuous Current 12 amps Maximum continuous power on a 2S lithium polymer 90Watts (2S) / 130Watts (3S) weight 22.5Grams An outer diameter 27.0 mm Shaft 3.0 mm Body Length 14.2 mm Overall shaft length 21.8 mm Props MANF. And size Input voltage (V), Current (A) Input watts (W) Propeller speed (/ min) Pitch rate Thrust (G) Eff is thrust. (G / W) Suggest curve APC 6 × 4 × 2-E 7.4 6.42 47.5 11197 42 254 5.34 **** APC 6 × 5.5 × 2-E 7.4 8.28 61.3 10390 54 239 3.9 **** APC’s 7 × 4 × 2-SF 7.4 9.6 71 9877 37 403 5.67 **** APC’s 7 × 5 × 2-SF 7.4 10.79 79.8 9337 44 397 4.97 *** APC’s 7 × 6 × 2-SF 7.4 12.46 92.2 8567 49 367 3.98 * APC’s 8 × 3.8 × 2-SF 7.4 13.04 96.5 8276 thirty 493 5.11 * GWS 6 × 3 × 3-DD 7.4 5.27 39 11737 33 257 6.59 ** GWS 7 × 3.5 × 2-DD 7.4 5.96 44.1 11407 38 302 6.85 ** GWS 7 × 3.5 × 3-DD 7.4 7.53 55.7 10703 36 347 6.23 **** GWS 8 × 4 × 2-DD 7.4 10.42 77.1 9480 36 470 6.1 *** GWS 8 × 4 × 3-DD 7.4 11.76 87.1 8845 34 475 5.46 *** GWS 8 × 4.3 × 2-SF 7.4 12.36 91.5 8476 35 459 5.02 * APC 4.1 × 4.1 × 2-E 11.1 5.24 58.1 18424 72 190 3.27 ** APC 4.5 × 4.1 × 2-E 11.1 6.54 72.6 17710 69 257 3.54 **** APC 4.75 × 4.25 × 2-E 11.1 7.74 85.9 17131 69 264 3.07 **** APC 4.75 × 4.75 × 2-E 11.1 8.42 93.4 16752 75 256 2.74 **** APC 4.75 × 5.5 × 2-E 11.1 9.34 103.7 16289 85 234 2.26 **** APC 5 × 5 × 2-E 11.1 9.38 104.2 16267 77 262 2.52 **** APC 5.25 × 4.75 × 2-E 11.1 10.35 114.9 15764 71 361 3.14 *** APC 5.5 × 4.5 × 2-E 11.1 10.61 117.8 15647 67 369 3.13 *** APC 6 × 4 × 2-E 11.1 11.67 129.5 15106 57 484 3.74 *** GWS 5 × 3 × 3-DD 11.1 6.88 76.3 17516 50 351 4.6 **** GWS 5 × 4.3 × 2-DD 11.1 7.02 77.9 17486 71 369 4.73 **** GWS 6 × 3 × 2-DD 11.1 8.64 95.9 16672 47 477 7.97 **** GWS 6 × 3 × 3-DD 11.1 9.42 104.5 16223 46 499 4.77 **** GWS 7 × 3.5 × 2-DD 11.1 11.36 126.1 15261 51 615 4.88 *** Please note: 1 “*”: The motor is too big props and can damage the motor, and should not be used. 2 “**”: The prop is too small to give a good performance from the motor. 3. “***”: The props can be used, but should be kept at full throttle burst. 4 “****”: This is a good prop rights magnitude of power from the motor. The prop chart data contained in the measure is based on a controlled test environment actually taken. Test voltage used is based on an appropriately sized lithium polymer battery current consumption of the motor being tested. If you are using a large capacity battery than normal, or a very high C- rated battery, the actual voltage will be higher than shown in this figure, which will lead to Hagrid current consumption for each use of props. You should always test your power system with Watt meter, every time a prop is used to ensure you do not exceed the recommended motor rating is used. This figure props proposal is received on the entire operation of the motor based on sufficient cooling. If the inner cover is a motor used, you must provide sufficient cooling to the motor to ensure that operation is not getting too hot.
