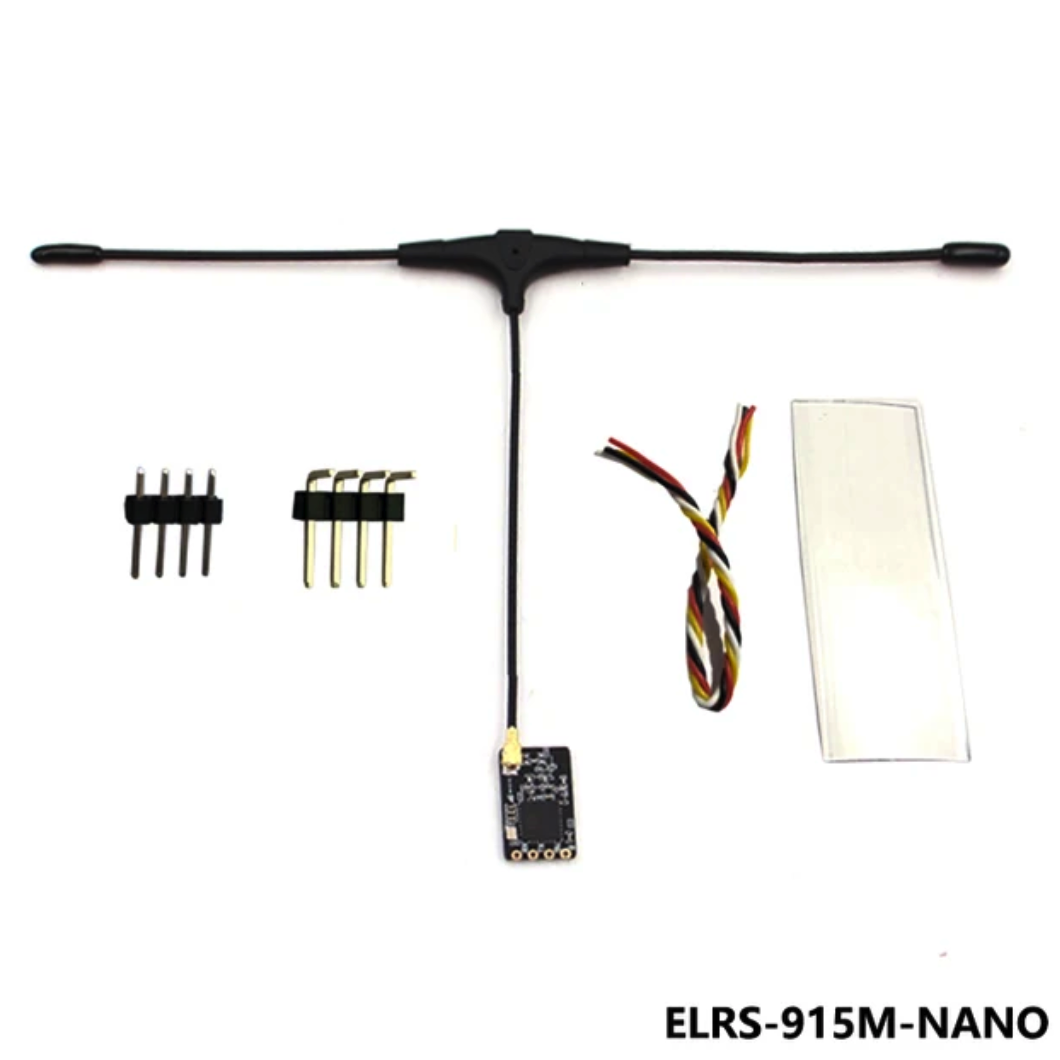

Description Specification： BAYCK ELRS 915M NANO Receiver, based on ExpressLRS open source system, ESP8285 SX1276 receiver, operating frequency configuration of 915MHZ, support WIFI upgrade, and has 100mw return power. And use nano receiver 11mm*18mm small size. Brand : BAYCK Model : ELRS 915M NANO RF Freq : 915Mhz IC : SX1276 ESP8285 TX Power : 100mW Color : Black Connector : IPEX 1 Input Power : 3.6-5.5V Weight : 0.6g(receiver only) Size : 11mm*18mm Firmware : BETAFPV 900 RX Package Included: BAYCK ELRS 915M Nano Receiver x 1 T type receiver antenna x 1 Heat shrink tube x 1 30AWG Silicone Wire x 4 2.54mm connector 1x4pin x 2 【ExpressLRS】 ExpressLRS is an open source RC link for RC applications, based on the ExpressLRS open source architecture and programs. Receiver with low latency and high refresh rate chip, excellent performance, perfect for FPV competition and remote FPV. 【ExpressLRS Receiver】 BAYCK ELRS 915 Nano Receiver based on ESP8285 SX1276, operating frequency 915Mhz, support for WIFI upgrades, an open source RC link for RC applications, designed to achieve the best link performance, It can provide as far as 100mW return. 【Long Range ELRS Receiver】 operating frequency 915Mhz,With this tiny teeny receiver you can achieve great range,100mW. 【ELRS Nano Receiver/Compact Design】 This ELRS Receiver only has 0.6g and the size is 11mm*18mm which is very suitable for Tiny whoop/FPV Racing Drone. 【Configuration & binding】 Nano receiver could enter binding status by power on/off three times. Step: Plugin and unplug nano receiver three times. Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode. Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse. If the receiver has a solid light, it’s bound.
