LawMate RX-1260D 1.2GHz Wireless AV Receiver V3 VRx For FPV & Wireless CCTV Cameras

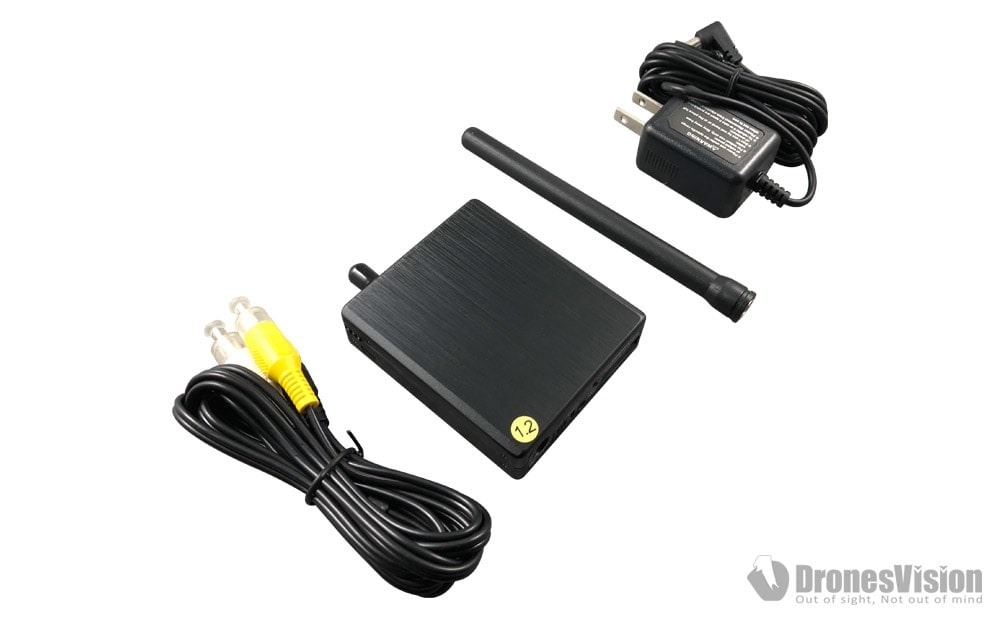

Description LAWMATE RX-1260D 1.2GHZ 8CH WIRELESS VIDEO AUDIO RECEIVER V3 It’s great for home security, wireless cctv cameras and first person view FPV piloting usages. LAWMATE 1.2G RX-1260D WIRELESS VIDEO AUDIO AV RECEIVER CHANNELS & FREQUENCIES CHART RX-1260 1080–1120–1160–1200–1240–1280–1320–1360 HOW TO SET UP LAWMATE RX-1260D WIRELESS VIDEO AUDIO RECEIVER DIP switches in the up position are disabled, the selected channel switch must be down to be enabled, so if you want to use CH-8 1360 MHz. DIPS 1~7 must be UP (disabled) and the DIP 8 has to be DOWN. FEATURES OF LAWMATE RX-1260D WIRELESS AV RECEIVER Highly integrated circuit 8-channel DIP switch selectable (DronesVision sells genuine original unmodefied LawMate 8CH, we dont sell handicaped version) Operating voltage: Vcc,12V Supply current Vcc =150mA Video input voltage 75-ohm impedance: 1Vp-p Audio input voltage 10k ohm impedance: 1Vp-p Dimension and weight 88 x 67 x 21mm, 91g Detacheable SMA connector Video: PAL / NTSC IN THE BOX 1 x Video Receiver RX-1260D 1 x Stereo jack to RCA AV output cable 1 x LawMate Stock dipole antenna LAWMATE RX-1260CK WORKS WITH LawMate TM-121800D 1.2Ghz 1.3Ghz 1000mW Wireless Video Transmitter LawMate TM-121800 1.2Ghz 1.3Ghz 1000mW Wireless Video Transmitter LawMate TM-120500LM 1.2Ghz 500mW Wireless Video Transmitter LawMate TM-120200mini 1.2Ghz 100mW Wireless Video Transmitter The stock whip antenna can be replaced by LawMate MP-1205 1.2Ghz 5dBi Panel Antenna Or for better reception, longer range, you can consider 1.2Ghz 14dBi Patch Antenna For ultimate long range, an antenna tracking device is recommended. Check our MFD AAT, the world’s first automatic antenna tracker for FPV For ground station recording, we recommend you to use LawMate PV-500EVO HD Touch Screen Portable Recorder For power solution please use KongPower 3S1P battery with JST plug
