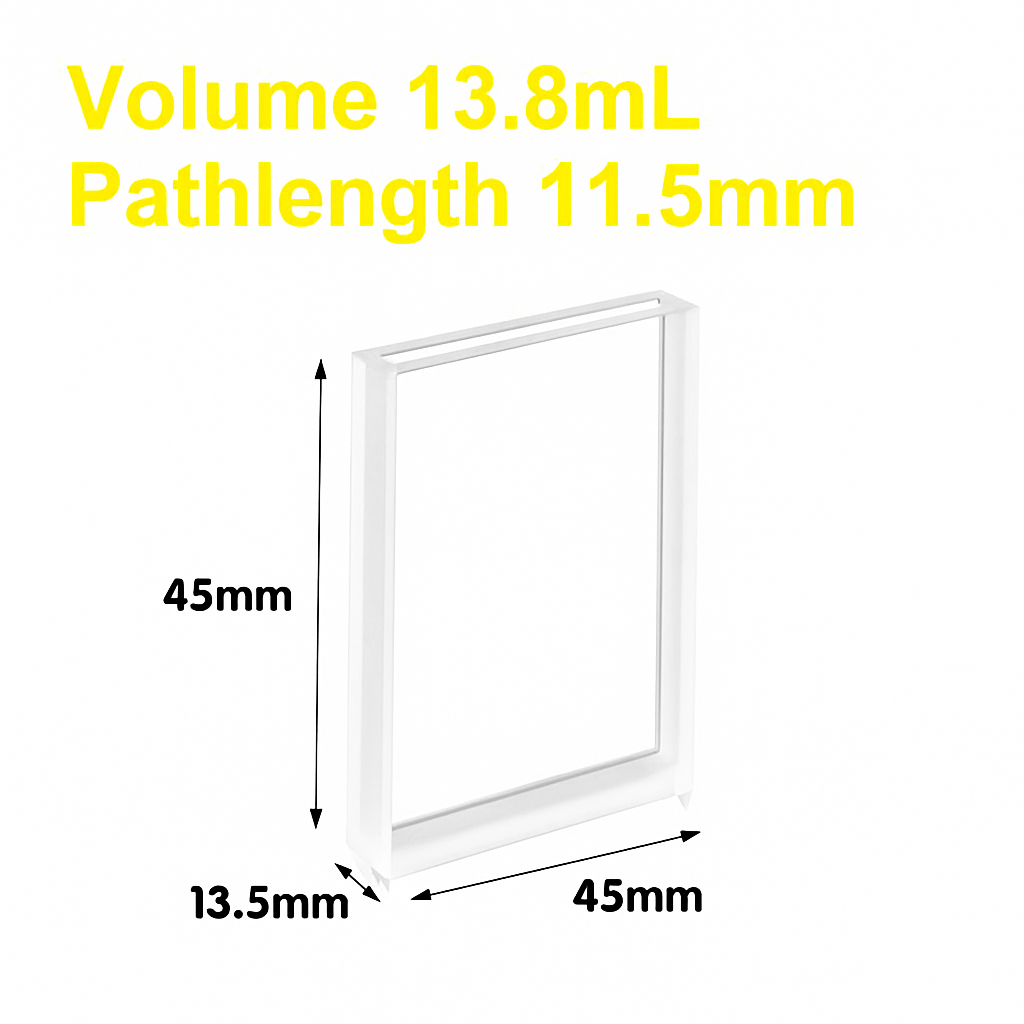

(VAOF138) 13.8ml Absorption Cuvette, Fused, Lightpath 11.5mm, 45x30x13.5 mm, 2 Clear Windows

Description VAOF138 Fused Quartz Absorption Cuvette is a 2-window quartz cuvette with a 13.8 ml volume, designed as a customized size product for specific experimental and OEM applications. Made from high-purity fused quartz, this cuvette offers excellent optical clarity, chemical resistance, and thermal stability, making it suitable for demanding laboratory environments. Unlike standard catalog cuvettes, this model is precision-fabricated to custom dimensions, allowing researchers and equipment manufacturers to achieve exact compatibility with unique instrument holders, optical setups, or flow systems. This cuvette is ideal for: Custom instrument integration and OEM use Specialized analytical applications in R&D Experimental setups requiring non-standard cuvette geometry Laboratory users needing exact dimension control for optical alignment Key Features Customized dimensions — precisely fabricated for specialized instrument compatibility. 2-window design — ideal for standard transmission and absorbance measurements. Fused fabrication — ensures excellent thermal resistance (up to 600 °C) and chemical durability. High-purity quartz — superior optical clarity for UV/VIS and NIR applications. Wavelength range — 190–2500 nm, suitable for most analytical instruments. Typical Applications OEM and custom system integration Custom experimental optical setups Material science and spectroscopy R&D Precision absorbance and transmission measurements Fused Fabrication Notes Fused quartz provides excellent stability, high temperature resistance, and optical quality. Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone. Powder seams may discolor over time but do not affect performance. Typical dimensional tolerance: ±0.06–0.08 mm. Cuvette Specifications Type Absorption Quartz Cuvette Volume 13.8 ml Article No. VAOF138 Clear Walls 45 × 30 mm Measuring Method Absorption Cells Wavelength Range UV/VIS (190 – 2500 nm) Number of Windows 2 Center Height (Z) 8.5 – 20 mm Height 45 mm Width (Inside) 28 mm Width (Outside) 30 mm Depth (Outside) 13.5 mm Fabrication Method Fused* Package Cell Only Note: VAOF138 is a customized fused quartz cuvette designed for OEM and research applications that require non-standard dimensions. It ensures excellent optical performance and stability for precise absorbance and transmission measurements. Comparison of Fabrication Types 1234 *Molded*Fused*Bonded / Glued UV vis ( 190- 2500 nm)YesYesYes Transmission Matched On RequestNoNo Transmission > 80%YesYesYes Resistant to Acids and Bases (except hydrofluoric acid)YesYesNo Resistant to Organic SolventsYesYesNo Usable upto 600°C (1112°F)YesYesYes Usable upto 1200°C (2192°F)YesNoNo 0 Variations ReadingOn RequestNoNo FabricationMoldedAssembled with Quartz PowderAssembled with Glue AdhesivesNoNoYes StorageShort Term StorageClean After UseClean After Use Available MaterialFused Quartz Material NoteMolded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.   1 QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included. Why QVARZ Cuvettes and Cells?QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results. Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants.  Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.  To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch. Related products Add to Wishlist Add to Wishlist (VAOFW1) 1ml Absorption Cuvette, Fused, Lightpath 5mm, 20x15x8 mm, 2 Clear Windows 100 gIn Stock$41.00Add to cart Add to Wishlist Add to Wishlist Add to Wishlist Add to Wishlist (VAOF45) 7mL Macro Window Clear Cuvette, Fused, Lightpath 5mm, 45x45x7 mm 100 gIn Stock$139.00Add to cart Add to Wishlist Add to Wishlist Add to Wishlist Add to Wishlist (VAOF39) 3.9ml Fluorescence Cuvette, Fused, Dual Lightpath 5/21mm, 40x25x9 mm, 4 Clear Windows 100 gIn Stock$103.00Add to cart Add to Wishlist Add to Wishlist Add to Wishlist Add to Wishlist (VAOF05) 0.5ml Absorption Cuvette, Fused, Lightpath 3mm, 21.5x10x5 mm, 2 Clear Windows 100 gIn Stock$49.00Add to cart Add to Wishlist Add to Wishlist
